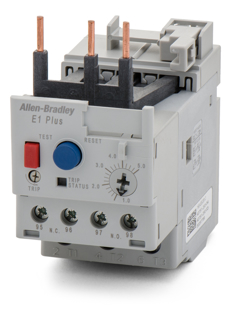

ALLEN BRADLEY OVERLOAD RELAY | AUTO OR MANUAL RESET | 1-5 AMPS | 193-EECB

Part Number 41-305-105
SKU: 41-305-105
Manufacturer part number: 193-EECB
Manufacturer: Allen Bradley
$113.68

Allen Bradley E1 Plus Solid-State Overload Relay

  • Mounts to C09 – C23 Contactors
  • Adjustment Range  1.0A - 5.0A
  • Phase loss protection
  • 1 N.O. and 1 N.C. isolated auxiliary contacts (B600 Rated)
  • Ambient temperature compensation
  • Visible trip indication
  • Selectable Trip Class (10, 15, 20, or 30)
  • Selectable manual/auto-manual reset



Trip TypeClass 10, 15, 20, 30

Reset TypeManual/Automatic

Insulation690 VAC

Size5-25/32 IN Height X 1-25/32 IN Width X 3-23/64 IN Depth

MountingM5 Screw

Environmental ConditionsStorage Temperature:-40 To 80 DEG C, Vibration:3 G Per IEC/EN 60068-2-6 Service, Shock:30 G Per IEC/EN 68000-2-27 Transport, Altitude:2000 M

Operating Temperature-20 To 60 DEG C

Contact Configuration1NO 1NC

Contact Rating17 V, 5 MA

Sub BrandE1 Plus

Operational CurrentAC:3 A At 12 - 120 V, 1.5 A At 220 - 240 V, 0.75 A At 380 - 480 V, 0.6 A At 500 - 600 V

Control Voltage RatingMain Circuits:690 VAC/600 VAC, Control Circuits:690 VAC/600 VAC

Full Load Current Range1 - 5 A

Impulse Voltage6 KVAC

EnclosureIP20
