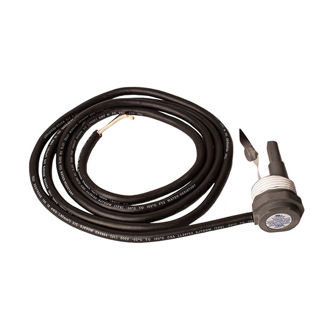

HARWIL FLOW SWITCH | 6' LONG | Q-10N-7-NC-6

Part Number 80-000-623
SKU: 80-000-623
Manufacturer part number: Q-10N-7-NC-6ft
Manufacturer: Harwil
$183.62

6 Foot long power cord / Normally closed switch / 3" pipe size /Used on Flow Boy Pump Stations

Extremely Wide Operating Range:

• Down to 0.9 GPM in 1.0 inch pipes
• Up to 1025 GPM in 16 inch pipes

Model Q-10N can be used for mild acids and bases

Typical Uses
Monitoring flow of coolant water supplied to:
• RF and Radar transmitters
• High power transistors, SCR's etc.
• Computer systems
• Electromagnets
• Transformers
• Brakes and clutches
• Lasers
• Spot welders
• Vacuum systems
• Marine and stationary engines
• Emergency washdown showers
• Fire sprinkler flow alarms

In Chemical Processing
• Liquid transfer
• Water treatment
• Sewage systems (filtered)
• Fluid blending systems
• Monitoring pump output, valve position, systems flow status
• Liquid scrubbers
• Starting back-up pumps
• Monitor filter clogging
• Heat transfer fluids
• Contaminated groundwater

Reed Switch Electrical Characteristics:

SPNO Contact ratings:
AC Voltage (Max switching)             300 VAC
DC Voltage (Max switching)             350 VDC
Current (max switching)                  0.5 amp
Current (max carrying)                    2.5 amp
Power (max) (VA, W)                      50 watts
Contact resistance (max initial)        0.15 ohms
Insulation resistance                       1010 ohms
Operating temperature                    -40°F to 240°F
                                                  (-40°C to 115°C)



Flow Switch Q-10N Specs



6 Foot long power cord / Normally closed switch / 3" pipe size /Used on Flow Boy Pump Stations

Extremely Wide Operating Range:

• Down to 0.9 GPM in 1.0 inch pipes
• Up to 1025 GPM in 16 inch pipes

Model Q-10N can be used for mild acids and bases

Typical Uses
Monitoring flow of coolant water supplied to:
• RF and Radar transmitters
• High power transistors, SCR's etc.
• Computer systems
• Electromagnets
• Transformers
• Brakes and clutches
• Lasers
• Spot welders
• Vacuum systems
• Marine and stationary engines
• Emergency washdown showers
• Fire sprinkler flow alarms

In Chemical Processing
• Liquid transfer
• Water treatment
• Sewage systems (filtered)
• Fluid blending systems
• Monitoring pump output, valve position, systems flow status
• Liquid scrubbers
• Starting back-up pumps
• Monitor filter clogging
• Heat transfer fluids
• Contaminated groundwater

Reed Switch Electrical Characteristics:

SPNO Contact ratings:
AC Voltage (Max switching)             300 VAC
DC Voltage (Max switching)             350 VDC
Current (max switching)                  0.5 amp
Current (max carrying)                    2.5 amp
Power (max) (VA, W)                      50 watts
Contact resistance (max initial)        0.15 ohms
Insulation resistance                       1010 ohms
Operating temperature                    -40°F to 240°F
                                                  (-40°C to 115°C)



Flow Switch Q-10N Specs
